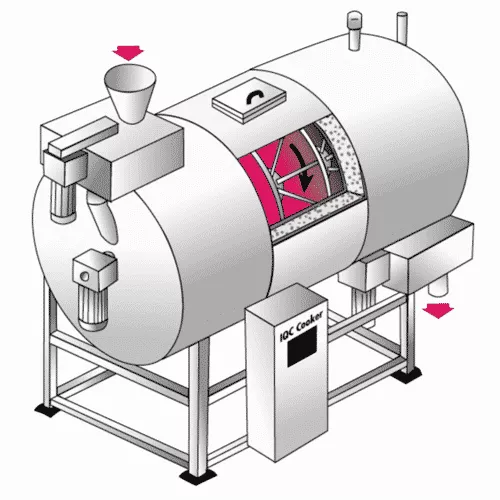

cooker schematic

Continuous Pressure Cooker

CONTINUOUS PRESSURE COOKER
Advanced Equipment has utilized more than 50 years of proven cooking and high technology enclosure design to create this most efficient and trouble-free pressure cooking system. This continuous pressure cooking system is unique and the most versatile design compared to other type of cookers. It cooks faster than any conventional steam cooker.
Efficient and trouble-free pressure cooking system. This unique continuous pressure cooking system cooks faster than any conventional steam cooker.

TROUBLE FREE
Advanced has utilized more than 50 years of proven cooking and high technology enclosure design to create this most efficient and trouble-free pressure cooking system. This continuous pressure cooking system is unique and the most versatile design compared to other type of cookers. It cooks faster than any conventional steam cooker.

GUARANTEED COOKING QUALITY
The ADVANCED CONTINUOUS PRESSURE COOKER assures excellent fast and even product cooking quality by continuously injection steam, agitating & conveying the product through the cooking chamber until it is fully cooked. The especially design cylinder rotary valves assures minimum product damage during product transfer between pressure zones.

GUARANTEED MANUFACTURING & DESIGN QUALITY
The ADVANCED CONTINUOUS PRESSURE COOKER is completely factory assembled and tested prior to shipping The cooker is constructed with all stainless steel material. The cooker chamber is constructed heavy gauge material completed with 5 inch thick foamed in-placed high density urethane laminated with heavy gauge Stainless Steel skins. The cooker center injection screw conveyor, cylinder rotary valves are driven by variable frequency drive system for a smooth and safe speed control.

GUARANTEED LOWEST OPERATION COST
The ADVANCED CONTINUOUS PRESSURE COOKER has the lowest operation cost compared to other steam cooker. This is achieved by utilizing the most efficient high density PU insulated enclosure chamber and custom design pressure sealed cylinder rotary valves. This assures lowest heat and steam loss during cooking process and yet maintaining cooker pressure and cooking temperature.

GUARANTEED CUSTOM DESIGN
ADVANCED EQUIPMENT INC. begins with a standard design that is carefully customized to meet most customers’ needs. However, we can also custom design our equipment to individual customer’s requirement.

I.Q.C. COOKER SPECIFICATIONS
Model No. PC2000 PC4000 PC6000
Production Capacity (Dry) 2000 kg/hr 4000 kg/hr 6000 kg/hr
Equipment Width 22000mm 22000mm 22000mm
Equipment Length 32000mm 5600mm 80000mm
Equipment Height 3600mm 3600mm 3600mm
Equipment Weight 10,000 Kg 20,000 Kg 30,000 Kg
Inlet Height 3600mm 3600mm 3600mm
Discharge Height 914mm 914mm 914mm

Steam Required 453 Kw/Hr 905 Kw/Hr 1358 Kw/Hr
Steam Cooking Pressure 1 Bar 1Bar 1Bar
Steam Cooking Temperature 120℃ 120℃ 120℃
Total Electricity Required 6Kw 9Kw 12 Kw
Voltage 380,460/3/60 380,460/3/60 380,460/3/60
